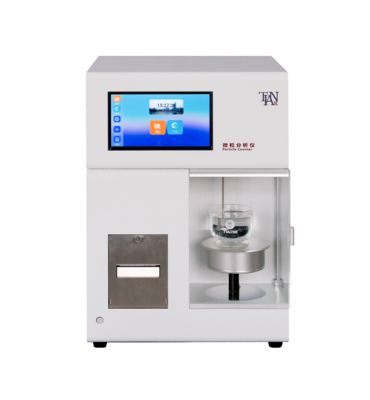

GWF-F1 微粒分析仪（审计一体机）
性能特点：
n 满足《中国药典》、《美国药典》及输液器具等标准的要求，设有多种标准的专用检测程序，可直接检测注射液、无菌粉末及输液器具中不溶性微粒的大小及数量
n 高性能激光光源及光能量补偿电路，保证各种无色、有色澄明样品的测试精度
n 进样狭缝及管路采用进口316L及PTFE材料，可直接检测有机溶剂、油基质等弱酸碱腐蚀性特殊溶液
n 高性能处理器，可自定义设置近万种粒径，精度0.1 µm，实现数据的高精度采集
n 全自动校准，提高校准效率，保证测试数据准确可靠
n 可按《中国药典》、《美国药典》、ISO21501等标准进行校准、检定，满足进出口检测要求
n 内置审计追踪功能，无需配置电脑，保证电子数据的完整性，可随时检索设备的使用信息及检测数据
n 支持多级账户管理，权限设置，并提供软件内报告功能，便于审核，保障数据安全
n 内置数据库实现数据海量存储，可以通过多种不同条件进行检索分析和统计
n 可视防尘门设计，防止环境对样品的污染
n 支持中英文切换，适用于不同语言环境
技术参数：
n 通道设置：64个（可自定义设置）
n 粒径范围：1~500 µm（分段选择）
n 计数范围：0~9999999粒
n 进样体积：0.2~1000 mL（精度0.1 mL）
n 进样体积精度：≤±0.5%
n 进样速度：5~80 mL/min
n 计数准确度：≤规定值±5%
n 通道分辨率：≥95%
n 相对标准偏差：≤1.5%（标准粒子≥1000粒/mL）
n 极限检测浓度：18000粒/mL
n 搅拌速度：0~800转/min（磁力搅拌、分段可调）
n 电 源：AC 220 V ±10%；50 Hz；≤80 W
n 外形尺寸：317x320x459 mm
n 整机重量：16 kg
n 工作温度：10~40 ℃
n 工作湿度：5~80% RH
n 操作系统：Android
n 数据输出：内置微型针式打印机；RS232接口、USB存储接口、WIFI和LAN接口

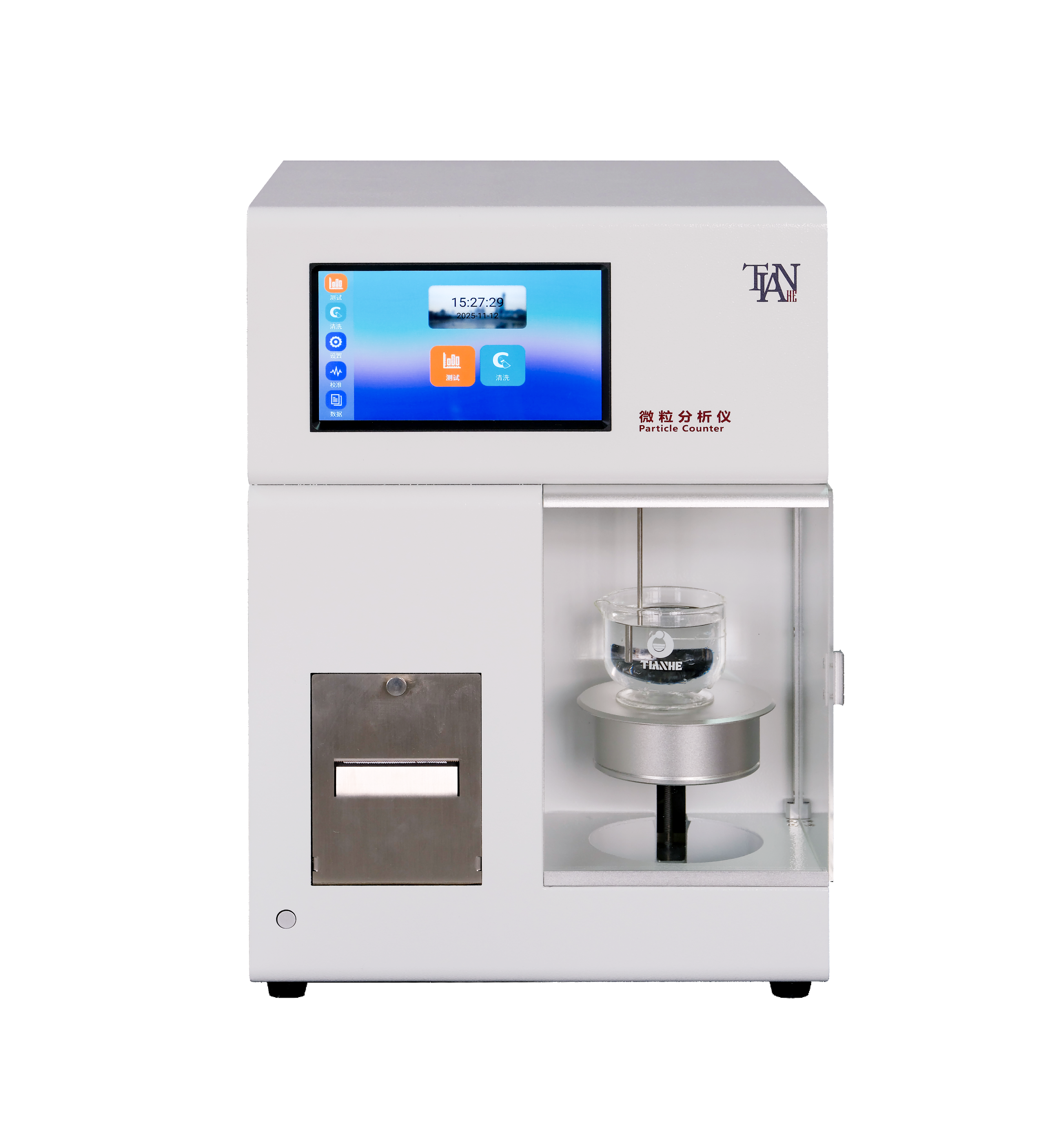

GWF-F1 Particle Counter
Performance Features：
n Compliant with standards such as the Chinese Pharmacopoeia, United States Pharmacopoeia, and infusion apparatus requirements. Equipped with dedicated testing programs for various standards, capable of directly detecting the size and number of insoluble particles in injections, sterile powders, and infusion apparatus.
n High-performance laser light source and light energy compensation circuitry ensure testing accuracy for various colorless and colored transparent samples.
n Sample inlet slit and tubing made of imported 316L and PTFE materials, allowing direct testing of special solutions such as organic solvents, oil-based matrices, and weak acid/alkali corrosive liquids.
n High-performance processor supports customizable setting of nearly 10,000 particle size channels with 0.1 µm precision, enabling high-accuracy data acquisition.
n Fully automatic calibration improves efficiency and ensures accurate and reliable test data..
n Calibration and verification can be performed according to standards such as the Chinese Pharmacopoeia, United States Pharmacopoeia, and ISO21501, meeting import and export testing requirements.
n Built-in audit trail function requires no additional computer configuration, ensures electronic data integrity, and allows retrieval of device usage information and test data at any time.
n Supports multi-level account management, permission settings, and built-in reporting functions for easy review and data security.
n Integrates a massive-capacity internal database for data storage, allowing retrieval, analysis, and statistics under various conditions.
n Transparent dust-proof door design minimizes environmental contamination during testing.
n Supports Chinese/English language switching for multi-language environments.
Technical Parameters:
n Channel Configuration: 64 channels (customizable)
n Particle Size Range: 1–500 µm (selectable in segments)
n Counting Range: 0–9,999,999 particles
n Sample Volume: 0.2–1,000 mL (0.1 mL precision)
n Sample Volume Accuracy: ≤±0.5%
n Sampling Speed: 5–80 mL/min
n Counting Accuracy: ≤±5% of specified value
n Channel Resolution: ≥95%
n Relative Standard Deviation (RSD): ≤1.5% (for standard particles ≥1,000 particles/mL)
n Maximum Detectable Concentration: 18,000 particles/mL
n Stirring Speed: 0–800 rpm (magnetic stirring, adjustable in segments)
n Power Supply: AC 220 V ±10%, 50 Hz, ≤80 W
n Dimensions: 317×320×459 mm (W×D×H)
n Weight: 16 kg
n Operating Temperature: 10–40 °C
n Operating Humidity: 5–80% RH
n Operating System: Android
n Data Output: Built-in miniature pin printer; RS-232, USB, Wi-Fi, and LAN interfaces
